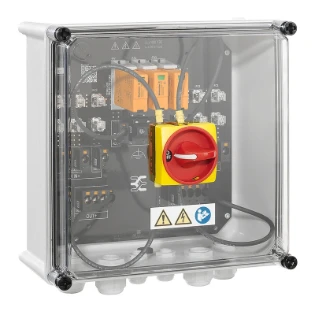

Weidmüller - Fotovoltaische DC Stringbox - PVN1M1I3S0F3V1O0TXPX10

2683050000 COMBINER BOX (PHOTO VOLTAIK), 1000 V, 1 MPPT, 3 INPUTS / 3 OUTPUTS PER

Combiner box for inverters with 1 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:3 inputs, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.3 outputs, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.Max. string voltage Uoc: 1000 VDC1 class/type I + II combined arrester with signal contactFuse holders for inputs and outputs (fuses 10x38 to be ordered separately)With lockable DC load break switch for safe separation of the string lines according to DIN EN IEC 60947-3Connection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 330x302x214 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2

Duurzaam product

Dit product is aangemerkt als duurzaam doordat aan de ETIM productgroep "Fotovoltaische DC Stringbox" bij juiste toepassing energiebesparende dan wel energieopwekkende eigenschappen zijn toegekend. Dit leidt tot CO2-reductie.
