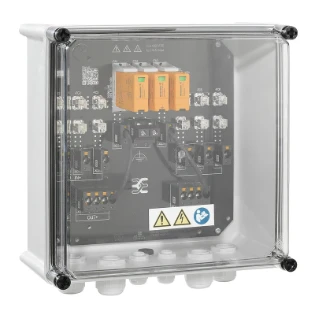

Weidmüller - Fotovoltaische DC Stringbox - PVN1M1I3SXF3V1O0TXPX10

2683030000 COMBINER BOX (PHOTO VOLTAIK), 1000 V, 1 MPPT, 3 INPUTS / 3 OUTPUTS PER

Combiner box for inverters with 1 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:3 inputs, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.3 outputs, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.Max. string voltage Uoc: 1000 VDC1 class/type I + II combined arrester with signal contactFuse holders for inputs and outputs (fuses 10x38 to be ordered separately)Connection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 330x302x175 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2

Duurzaam product

Dit product is aangemerkt als duurzaam doordat aan de ETIM productgroep "Fotovoltaische DC Stringbox" bij juiste toepassing energiebesparende dan wel energieopwekkende eigenschappen zijn toegekend. Dit leidt tot CO2-reductie.
