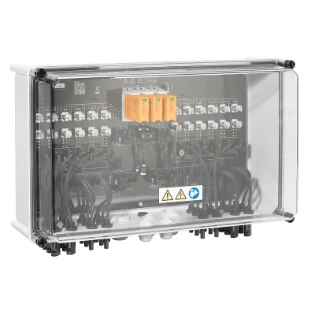

Weidmüller - Fotovoltaische DC Stringbox - PVN1M1I6SXF3V1O1TXPX10

2737440000 COMBINER BOX (PHOTO VOLTAIK), 1000 V, 1 MPPT, 6 INPUTS / 6 OUTPUTS PER

Combiner box for inverters with 1 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:6 inputs, connection via WM4 C connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:20636 outputs, connection via WM4 C connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063Max. string voltage Uoc: 1000 VDC1 class/type I + II combined arrester with signal contactFuse holders for inputs and outputs (fuses 10x38 to be ordered separately)Connection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 334x488x210 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2

Duurzaam product

Dit product is aangemerkt als duurzaam doordat aan de ETIM productgroep "Fotovoltaische DC Stringbox" bij juiste toepassing energiebesparende dan wel energieopwekkende eigenschappen zijn toegekend. Dit leidt tot CO2-reductie.
